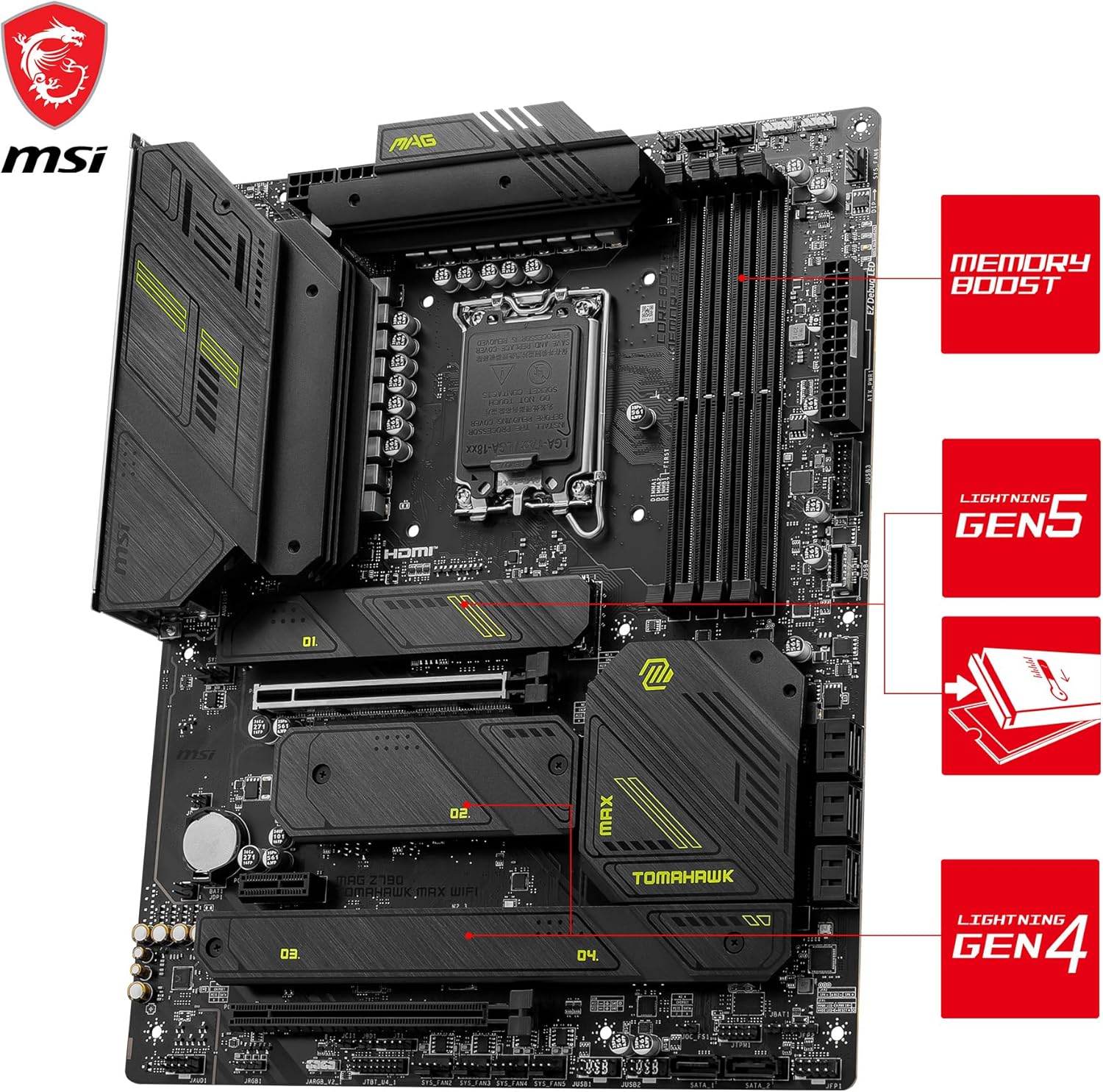

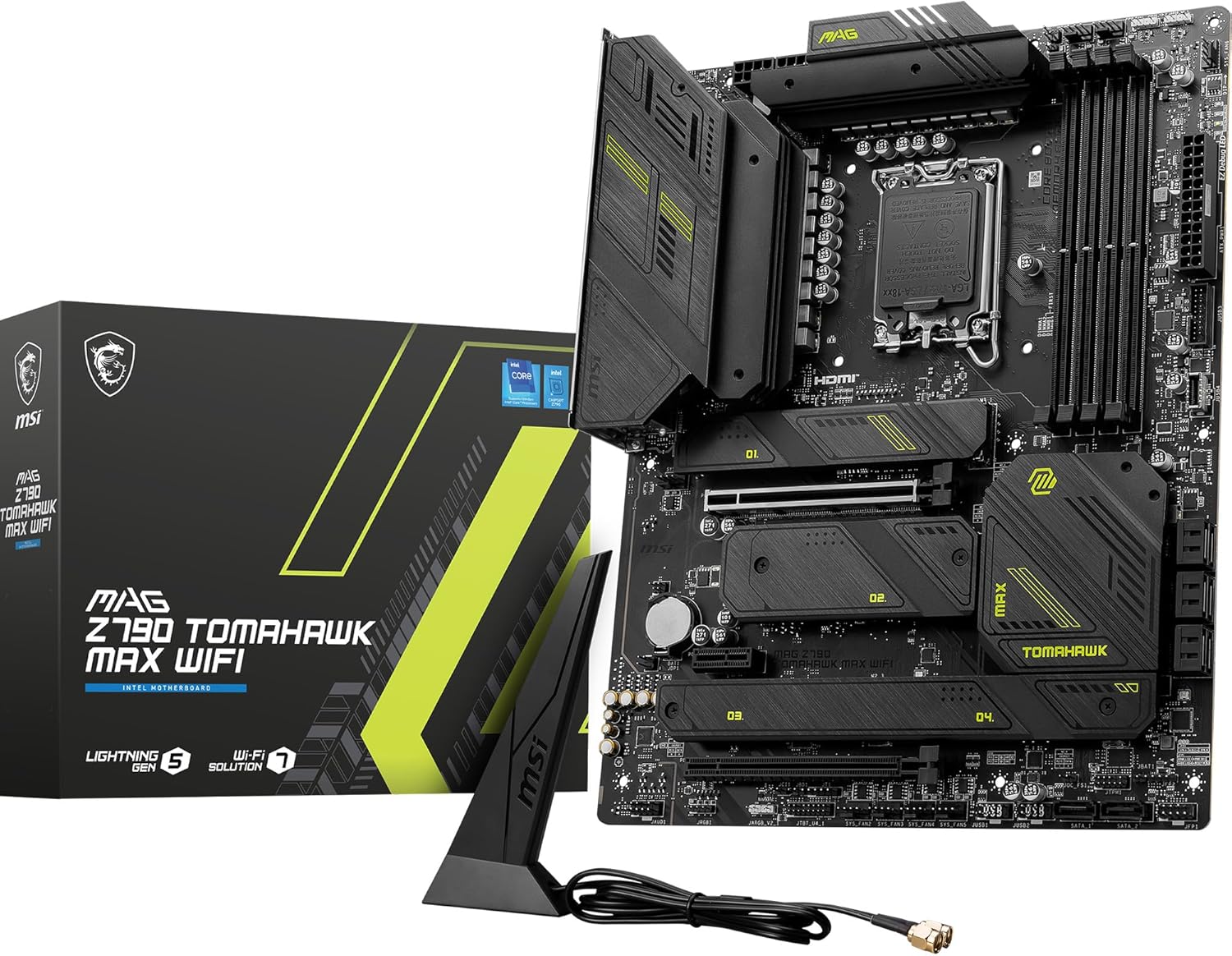

Msi MAG Z790 TOMAHAWK MAX WIFI Intel® LGA 1700 ATX Motherboard, Intel Z790 Chipset, 4x DDR5, 1x HDMI™, 2x PCI-E x16 slot, 4x M.2, 8x SATA 6G, Intel® 2.5Gbps LAN, Wi-Fi 7, Realtek® ALC4080 Codec, 4x EZ Debug LED, High Quality PCB | 911-7E25-010-GC
Msi MAG Z790 TOMAHAWK MAX WIFI Intel® LGA 1700 ATX Motherboard, Intel Z790 Chipset, 4x DDR5, 1x HDMI™, 2x PCI-E x16 slot, 4x M.2, 8x SATA 6G, Intel® 2.5Gbps LAN, Wi-Fi 7, Realtek® ALC4080 Codec, 4x EZ Debug LED, High Quality PCB | 911-7E25-010-GC
$46.90
Original: $134.00
-65%Msi MAG Z790 TOMAHAWK MAX WIFI Intel® LGA 1700 ATX Motherboard, Intel Z790 Chipset, 4x DDR5, 1x HDMI™, 2x PCI-E x16 slot, 4x M.2, 8x SATA 6G, Intel® 2.5Gbps LAN, Wi-Fi 7, Realtek® ALC4080 Codec, 4x EZ Debug LED, High Quality PCB | 911-7E25-010-GC—
$134.00
$46.90The Story
| Chipset | INTEL Z790 |
|---|---|
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Audio | Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel |
| Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices 8x SATA 6G *PCI_E1 slot will be Gen5x8 when installing M.2 SSD in the M2_1 slot. *SATA_1 & SATA_2 will be unavailable when installing M.2 SATA SSD in the M2_3 slot. |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices *SATA_A1_A2 do not support RAID function. |
| USB | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 4x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) |
| LAN | Intel® 2.5Gbps LAN |
| Internal IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 1x USB4 card connector (JTBT_U4_1, supports RTD3) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan. |
| LED FEATURE | 4x EZ Debug LED |
| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
